Tutorial: Connect Corporate Bank A/C & view Transactions
The following steps are only applicable to Corporate Financial institutions.
In this section, you will learn how to connect with Corporate Bank Accounts and access your first financial data like accounts, balances, and transactions.
Brick is currently offering two environments:
- Sandbox, a sandbox environment with test data perfect for test and development phases.
- Production, a live environment used in production with real connections to institutions.
To generate your keys for each environment, have a look to our guide to get your Brick API keys or Sign Up now!.
In the following examples, we will use the sandbox environment. Change the base URL to https://api.onebrick.com/v2 for using the APIs in production.
Our new version of APIs(v2) is callback-based APIs, So if you have not set up a callback URL till now, Please set it from brick dashboard.
Step 1: Generate a JWT bearer token (Public access token)
Data Product
Use public token API with sandbox API keys with client_id & client_secret to get a JWT(JSON Web Token). This JWT or what we call a public access token can be used to launch the Brick widget and access the institution list.
curl --request GET \
--url https://sandbox.onebrick.io/v2/data/auth/token \
--header 'Accept: application/json' \
--header 'password: client_secret' \
--header 'username: client_id'
This API gives give you a JWT/public access token that is only valid for the next 30 minutes and which can be used to launch the Brick Widget and access Brick APIs. It can be used multiple times in 30 minutes.
{
"status": 200,
"data": {
"message": "We are successfully able to fetch data",
"access_token": "token",
"primary_color": "#97FF00",
"expiry": 1654681846751
},
"metadata": {
"source": {{API/Widget/Dashboard/SDK/Portal}},
"entity": "AUTH"
},
"error": null
}
Step 2: List all supported institutions ( Optional )
You can use this JWT/public access token to view the list of institutions currently supported by Brick.
curl --request GET \
--url https://sandbox.onebrick.io/v2/data/institution/list \
--header 'Accept: application/json' \
--header 'public_access_token: public_access_token'
Where [JWT-public-access-token] is the public access token/JWT generated in the previous step which needs to be passed as the Bearer token in the Authorization header.
The API responds with the institution's list currently supported by Brick.
Step 3: Launch Brick Widget for Corporate Bank Account
Use the JWT/public-access-token to launch the brick widget in your application and let your users connect their Financial Institution accounts with your application.
To launch the brick UI widget you need to construct the URL in the following format-
https://cdn.onebrick.io/sandbox-widget/v1/?accessToken=public-sandbox-access-token
Notice that the URL above is a newer version ( V1 ) of our Brick Widget that contained a new feature inside comparing to the old version. Currently, we still offer you our old Brick Widget where your end-user can only connect a single account at a time ( https://cdn.onebrick.io/sandbox-widget/?accessToken=public-sandbox-access-token ) until further notice.
Therefore, we encourage you to integrate and experienced our newest feature on Brick Widget as soon as possible where your end-user have the ability to connect multiple accounts/institutions in single flow.
P.S : This feature would be very helpful for you to have as much information from the connected accounts/institutions from your end-users.

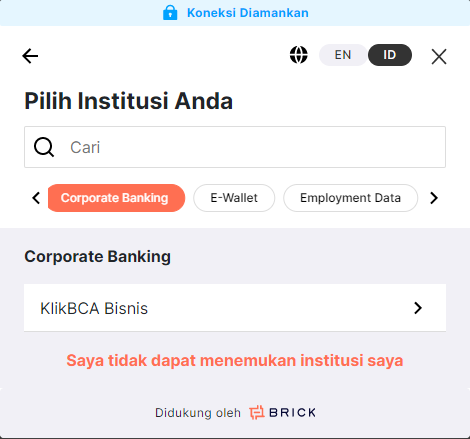

1. BCA Corporation

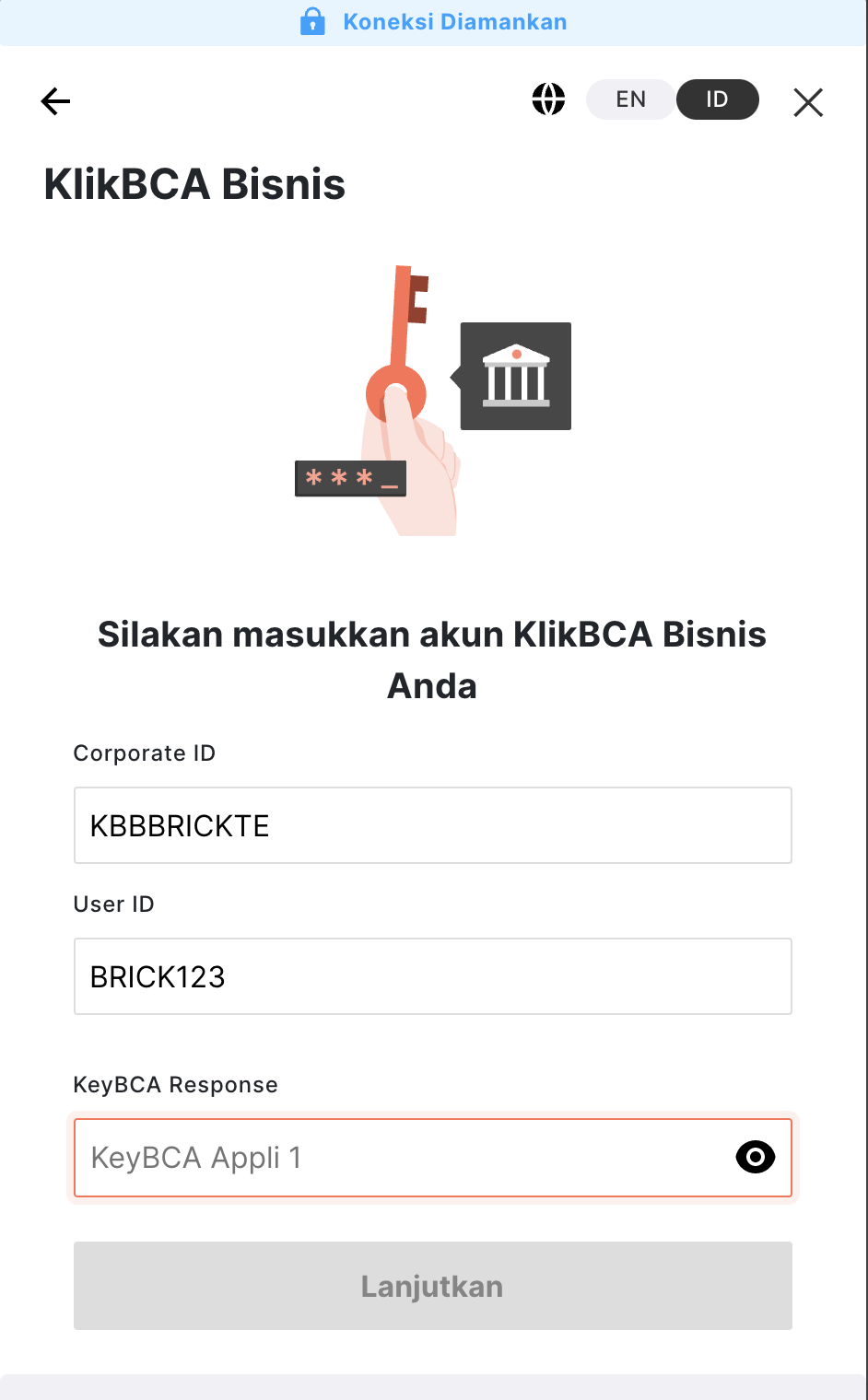

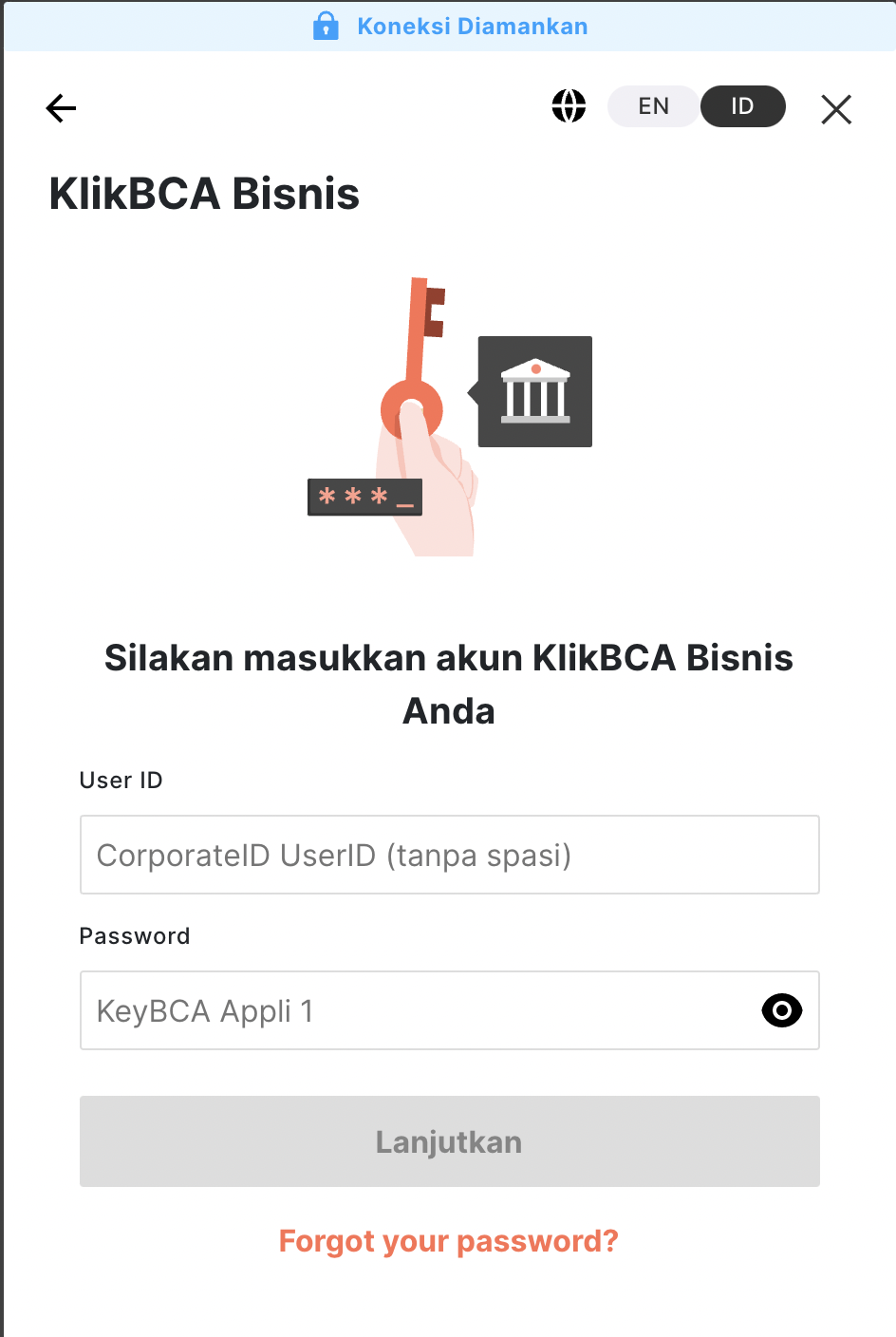

From the above picture, you can choose Corporate Banking (KlikBCA Bisnis) to continue with. Then once you choose KlikBCA Bisnis, you will need to key in your UserID and Password.
If your UserID and Password is eligible, then KlikBCA Bisnis will prompt you for your additional information related to Corporate ID, UserID and KeyBCA Response refer to the following picture.
Finally, you will be able to see the user-access-token. There are some optional parameters that can be added to the above URL for customizations which can be seen here.
Read the Brick Widget Section to see in-depth integration steps.
Read our Authentication - Build your own Widget on how to generate user-access-token via API.
Step 4: Retrieve Financial Institution accounts
Retrieve List of all accounts for this user
Using the previously created user-access-token in Step 3 and public_access_token in Step 1, We can now retrieve the information about different financial institution accounts connected by this user.
curl --request GET \
--url https://sandbox.onebrick.io/v2/data/account/list \
--header 'Accept: application/json' \
--header 'public_access_token: public_access_token' \
--header 'user-access-token: user_access_token'
Where [user-access-token] is the access token generated after a successful financial Institution connection through the widget which needs to be passed in headers as user_access_token.
This API is Async API, So once you send the request you will receive the acceptance response synchronously and then will receive the data in your callback URL asynchronously. If you haven't set the callback URL till now, Feel free to set it from here.
The API responds with accounts associated with the user who logged in using the Brick widget.
After you have clicked the send GET request, you will get a JSON response like the following.
{
"status": 202,
"data": {
"job_id": "KVWJUrwQ78333309",
"message": "We are processing your request and will send the data in the callback URL."
},
"metadata": {
"source": {{API/Widget/Dashboard/SDK/Portal}},
"entity": "Data"
},
"error": null
}
{
"data": {
"method": "GET",
"api": "/v2/data/account/list",
"message": "We are able to fetch a list of accounts of end-users",
"job_id": "MaBkJUww03291282",
"count": "1",
"last_updated_at": "1662103296909",
"session": "valid",
"account_list": [
{
"account_id": "XH3c7dtoskIqAmEbwHAM7Q==",
"account_holder": "ABC",
"account_number": "88XXXXXX6",
"type": "Savings",
"currency": "IDR"
"balances": {
"available": 2195258.5,
"current": 2195258.5,
"limit": null
},
{
"account_id": "XH3c7dtoskIqAmEbwHAM7Q==",
"account_holder": "XYZ ",
"account_number": "88XXXXXX7",
"type": "Savings",
"currency": "IDR"
"balances": {
"available": 2111258.5,
"current": 195258.5,
"limit": null
},
}
]
},
"metadata": {
"entity": "Data",
"source": "API"
},
"error": null,
"status": 200
}
Retrieve details of a particular Financial Institution account
Using the account_id retrieved from the previous API- accounts list, You can get in-depth details about the account including any identifying information that's available on the account.
curl --request GET \
--url 'https://sandbox.onebrick.io/v2/data/account/detail?account_id=account_id' \
--header 'Accept: application/json' \
--header 'public_access_token: public_access_toke' \
--header 'user-access-token: user_access_token'
Where [user-access-token] is the access token generated after a successful Financial institution connection through the widget which needs to be passed as the Bearer token in the Authorization header. And accountId is the identification of the account for which you want the details.
Where [user-access-token] is the access token generated after a successful financial Institution connection through the widget which needs to be passed as the user_access_token and account_id is the identification of the account for which you want the details.
This API is Async API, So once you send the request you will receive the acceptance response synchronously and then will receive the data in your callback URL asynchronously. If you haven't set the callback URL till now, Feel free to set it from here.
The API responds with details of the account associated with the account_id.
{
"status": 202,
"data": {
"job_id": "KVWJUrwQ78333309",
"message": "We are processing your request and will send the data in the callback URL."
},
"metadata": {
"source": {{API/Widget/Dashboard/SDK/Portal}},
"entity": "Data"
},
"error": null
}
{
"data": {
"method": "GET",
"api": "/v2/data/account/detail",
"job_id": "GYGJ4Tbb03371498",
"last_updated_at": "1662103375848",
"message": "We are able to fetch account details for you",
"session": "valid",
"account_details": {
"account_holder": "Taufic Hidayat",
"account_id": "XH3c7dtoskIqAmEbwHAM7Q==",
"account_number": "8831355336",
"address": null,
"email": null,
"ktp_number": null,
"phone_number": null,
"type": "Savings",
"balances": {
"available": 2195258.5,
"current": 2195258.5,
"limit": null
},
"currency": "IDR"
}
},
"metadata": {
"entity": "Data",
"source": "API"
},
"error": null,
"status": 200
}
Step 5: Retrieve transactions
Using the previously generated user-access-token in step 3 and public_access_token in step 1, We can now retrieve all transactions for a user from all his financial institution account under the login used with the brick widget.
curl --request GET \
--url 'https://sandbox.onebrick.io/v2/data/transaction/list?from=10-03-2020&to=10-04-2020' \
--header 'Accept: application/json' \
--header 'public_access_token: public_access_token' \
--header 'user-access-token: user_access_token'
Where parameters [from] and [to] can be changed to your liking. In the example, we will retrieve transactions that happened between 15-01-2020 to 20-03-2022.
Where [user-access-token] is the access token generated after a successful Financial institution connection through the widget which needs to be passed as the headers.
This API is Async API, So once you send the request you will receive the acceptance response synchronously and then will receive the data in your callback URL asynchronously. If you haven't set the callback URL till now, Feel free to set it from here.
The API responds with rich transaction data of all the accounts associated with the user under his login.
{
"status": 202,
"data": {
"job_id": "KVWJUrwQ78333309",
"message": "We are processing your request and will send the data in the callback URL."
},
"metadata": {
"source": {{API/Widget/Dashboard/SDK/Portal}},
"entity": "Data"
},
"error": null
}
{
"data": {
"method": "GET",
"api": "/v2/data/transaction/list",
"job_id": "PRwR0rlr03400817",
"message": "We are able to fetch transactions for you",
"count": "5",
"last_updated_at": 1662103406871,
"session": "valid",
"transaction_list": [
{
"id": 0,
"account_id": "XH3c7dtoskIqAmEbwHAM7Q==",
"account_number": "8831355336",
"account_currency": "IDR",
"institution_id": 2,
"merchant_id": 0,
"outlet_outlet_id": 0,
"location_city_id": 0,
"location_country_id": 0,
"date": "2022-08-12",
"amount": 10001,
"description": "TRSF E-BANKING CR 1208/FTSCY/WS95051 10001.00 BRICK TEKNOLOGI IN",
"status": "CONFIRMED",
"direction": "in",
"reference_id": "XH3c7dtoskIqAmEbwHAM7Q==-20220812-1",
"transaction_type": "Savings",
"category": {
"category_id": 5,
"category_name": "transfer-in ",
"classification_group_id": 26,
"classification_group": "account transfer-in",
"classification_subgroup_id": 92,
"classification_subgroup": "others account transfer-in"
}
},
{
"id": 0,
"account_id": "XH3c7dtoskIqAmEbwHAM7Q==",
"account_number": "8831355336",
"account_currency": "IDR",
"institution_id": 2,
"merchant_id": 0,
"outlet_outlet_id": 0,
"location_city_id": 0,
"location_country_id": 0,
"date": "2022-08-12",
"amount": 10002,
"description": "TRSF E-BANKING CR 1208/FTSCY/WS95051 10002.00 BRICK TEKNOLOGI IN",
"status": "CONFIRMED",
"direction": "in",
"reference_id": "XH3c7dtoskIqAmEbwHAM7Q==-20220812-2",
"transaction_type": "Savings",
"category": {
"category_id": 5,
"category_name": "transfer-in ",
"classification_group_id": 26,
"classification_group": "account transfer-in",
"classification_subgroup_id": 92,
"classification_subgroup": "others account transfer-in"
}
},
{
"id": 0,
"account_id": "XH3c7dtoskIqAmEbwHAM7Q==",
"account_number": "8831355336",
"account_currency": "IDR",
"institution_id": 2,
"merchant_id": 0,
"outlet_outlet_id": 0,
"location_city_id": 0,
"location_country_id": 0,
"date": "2022-08-12",
"amount": 10000,
"description": "TRSF E-BANKING CR 1208/FTSCY/WS95051 10000.00 BRICK TEKNOLOGI IN",
"status": "CONFIRMED",
"direction": "in",
"reference_id": "XH3c7dtoskIqAmEbwHAM7Q==-20220812-3",
"transaction_type": "Savings",
"category": {
"category_id": 5,
"category_name": "transfer-in ",
"classification_group_id": 26,
"classification_group": "account transfer-in",
"classification_subgroup_id": 92,
"classification_subgroup": "others account transfer-in"
}
},
{
"id": 0,
"account_id": "XH3c7dtoskIqAmEbwHAM7Q==",
"account_number": "8831355336",
"account_currency": "IDR",
"institution_id": 2,
"merchant_id": 0,
"outlet_outlet_id": 0,
"location_city_id": 0,
"location_country_id": 0,
"date": "2022-08-12",
"amount": 10001,
"description": "TRSF E-BANKING CR 1208/FTSCY/WS95051 10001.00 BRICK TEKNOLOGI IN",
"status": "CONFIRMED",
"direction": "in",
"reference_id": "XH3c7dtoskIqAmEbwHAM7Q==-20220812-4",
"transaction_type": "Savings",
"category": {
"category_id": 5,
"category_name": "transfer-in ",
"classification_group_id": 26,
"classification_group": "account transfer-in",
"classification_subgroup_id": 92,
"classification_subgroup": "others account transfer-in"
}
},
{
"id": 0,
"account_id": "XH3c7dtoskIqAmEbwHAM7Q==",
"account_number": "8831355336",
"account_currency": "IDR",
"institution_id": 2,
"merchant_id": 0,
"outlet_outlet_id": 0,
"location_city_id": 0,
"location_country_id": 0,
"date": "2022-08-19",
"amount": 15000,
"description": "BIAYA ADM",
"status": "CONFIRMED",
"direction": "out",
"reference_id": "XH3c7dtoskIqAmEbwHAM7Q==-20220819-1",
"transaction_type": "Savings",
"category": {
"category_id": 4,
"category_name": "payment",
"classification_group_id": 21,
"classification_group": "fee & tax",
"classification_subgroup_id": 63,
"classification_subgroup": "admin fee"
}
}
]
},
"metadata": {
"entity": "Data",
"source": "API"
},
"error": null,
"status": 200
}
Conclusion
Using this step by step guide you have been able to get a first preview on Brick's API and how to integrate Brick in your website or application
